What Is CMOS? A Complete Guide to Its Purpose & Function

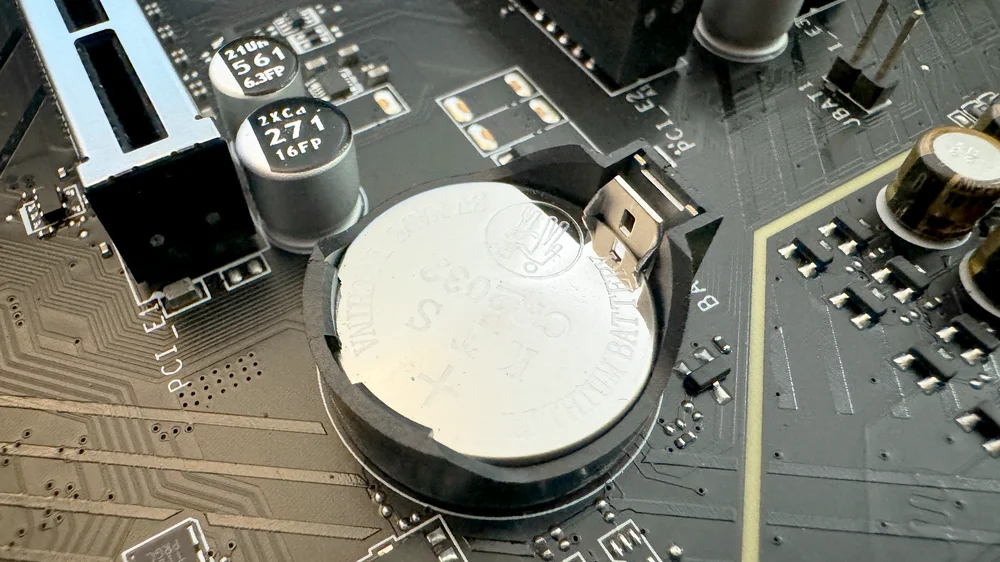

If you have ever opened up a computer tower or looked closely at a motherboard, you might have noticed a shiny, coin-shaped battery sitting among the circuits. Or perhaps you have encountered a cryptic error message on startup saying “CMOS Checksum Error” and wondered what on earth went wrong.

In the vast lexicon of computer acronyms—CPU, RAM, SSD, GPU—CMOS (pronounced “sea-moss”) is often overlooked. Yet, it is one of the most critical components in the history of computing. Without it, your computer would have amnesia every time you turned it off. It wouldn’t know the date, the time, or even which hard drive to boot from.

But CMOS is more than just a memory chip on a motherboard. It is a fundamental manufacturing technology that underpins almost every piece of digital electronics we use today, from the smartphone in your pocket to the image sensor in your DSLR camera.

In this comprehensive guide, we are going to demystify CMOS. We will explore its dual meaning—both as a tiny battery-backed chip in your PC and as a groundbreaking semiconductor technology—and explain exactly what it does, how it works, and why it matters.

The Dual Identity: Two Meanings of CMOS

To truly understand CMOS, we have to clear up a common confusion. The term refers to two distinct but related things in the tech world.

1. The Technology: Complementary Metal-Oxide-Semiconductor. This is a specific way of building integrated circuits (microchips). It is the manufacturing process used to create processors, memory chips, and image sensors.
2. The Component: The small amount of memory on a computer motherboard that stores the BIOS settings (like system time and hardware configurations). It is called “CMOS memory” because it is made using CMOS technology.

Most PC users are referring to the second definition when they talk about “clearing the CMOS.” However, to appreciate the component, we must first understand the technology that made it possible.

Part 1: CMOS as a Technology

A Brief History: The Power Struggle

In the early days of computing (the 1960s and 70s), microchips were power-hungry beasts. Technologies like TTL (Transistor-Transistor Logic) and NMOS (N-type Metal-Oxide-Semiconductor) were the standards. They were fast, but they had a major flaw: they consumed electricity constantly, even when they weren’t doing any calculations. This meant chips ran hot and drained batteries instantly.

Enter Frank Wanlass. In 1963, while working at Fairchild Semiconductor, he patented a new circuit design that used both N-type and P-type transistors in a complementary pair. The genius of this design was that it only used significant power when switching between states (on and off). When the circuit was idle, it consumed almost zero electricity.

This was the birth of CMOS. It took a while to catch on due to manufacturing complexities, but by the 1980s, as chips became denser and heat became a major issue, CMOS became the industry standard.

How It Works: The Push-Pull Mechanism

Imagine a door that needs to be opened and closed.

• Old Tech (NMOS): Imagine a strong spring holding the door closed. To open it, you have to push against the spring constantly. As long as the door is open, you are burning energy fighting the spring.
• New Tech (CMOS): Imagine a door with no spring, just a latch. You use energy to push it open, and it stays there. You use energy to pull it closed, and it stays there. While the door is sitting still (open or closed), you use zero energy.

In technical terms, CMOS uses pairs of transistors. One transistor pulls the output up to the positive voltage (Logic 1), and the other pulls it down to ground (Logic 0). They never conduct simultaneously. This “complementary” arrangement minimizes waste heat and power consumption, which is why your smartphone battery lasts all day despite having billions of transistors processing data.

Applications Beyond the Motherboard

Because of its low power and high density, CMOS technology is everywhere:

• Microprocessors: The Intel Core or AMD Ryzen CPU in your computer is built using CMOS processes.
• Image Sensors: If you have a digital camera or a smartphone, it likely uses a CMOS sensor to capture light and turn it into a digital image. It replaced the older CCD (Charge-Coupled Device) technology because it’s cheaper and uses less battery.
• ASICs: Application-Specific Integrated Circuits used in everything from microwaves to cars.

Part 2: CMOS in Your Computer (The BIOS Chip)

Now that we understand the manufacturing magic, let’s look at the specific chip on your motherboard that people usually mean when they say “CMOS.”

The Relationship Between BIOS and CMOS

To understand the CMOS chip, you need to understand the BIOS (Basic Input/Output System) or its modern successor, UEFI (Unified Extensible Firmware Interface).

The BIOS is the firmware—permanent software baked into a chip on the motherboard—that wakes up your computer. When you press the power button, the BIOS initializes the hardware (Power-On Self-Test or POST) and hands control over to the Operating System (Windows, Linux, etc.).

But here is the problem: The BIOS chip is read-only memory (ROM). You can’t easily change it. So, where does the computer store your specific settings? Where does it remember that you want to boot from the hard drive and not the DVD drive? Where does it keep the current time while the computer is unplugged?

It stores that variable data in the CMOS RAM.

What Does the CMOS Chip Store?

The CMOS RAM is a tiny chunk of volatile memory (usually only 256 bytes or slightly larger) that holds the configuration data for the BIOS.

Key data stored in CMOS includes:

• System Time and Date: The Real-Time Clock (RTC).
• Boot Order: Which drive loads the OS first (USB, SSD, HDD).
• Hardware Settings: Custom CPU clock speeds, voltage settings for overclocking, and fan speed profiles.
• Peripheral Configuration: Settings for enabling/disabling USB ports or integrated audio.
• Passwords: BIOS/UEFI administrator passwords.

The CMOS Battery: Keeping the Memory Alive

We mentioned earlier that CMOS technology uses very little power when idle. This is crucial for the CMOS RAM.

Because this memory is “volatile” (meaning it loses data when power is cut), it needs a constant power source to remember the settings. When your computer is plugged into the wall, it draws power from the power supply unit (PSU). But when you unplug the computer, the CMOS Battery takes over.

This is typically a CR2032 coin cell battery—the same kind found in watches and car key fobs. Because the CMOS chip is so efficient, this tiny battery can keep the memory alive for 5 to 10 years without needing replacement.

Symptoms of a Failing CMOS Battery

Like all batteries, the CR2032 eventually dies. When it does, the CMOS RAM loses power the moment you unplug your PC, and the data vanishes. Here is how to tell if your CMOS battery is dead:

1. “CMOS Checksum Error”: This is the most classic sign. It means the data the BIOS is reading doesn’t match what it expects (because the data was wiped).
2. System Time Resets: Every time you boot up, the clock is wrong. It often resets to a manufacturer default date (like Jan 1, 2008).
3. Boot Issues: The computer might forget which hard drive has Windows on it and refuse to boot.
4. Hardware Hardware Gone: Sometimes, specific ports or components you previously enabled might stop working as they revert to “Disabled” defaults.

How to Replace a CMOS Battery

Replacing it is one of the easiest computer repairs you can do.

1. Safety First: Turn off the PC and unplug it. Press the power button a few times to discharge residual electricity.
2. Open the Case: Remove the side panel.
3. Locate the Battery: Look for a silver coin-sized battery on the motherboard.
4. Remove: There is usually a small metal tab holding it in. Press the tab, and the battery pops up.
5. Replace: Snap a new CR2032 battery in (positive side up).
6. Reset: When you turn the PC back on, you will likely get a checksum error one last time. Enter the BIOS setup, set the correct date and time, and save.

How to “Clear CMOS” and Why You Would Do It

You might hear tech support advise you to “Clear the CMOS” or “Reset the BIOS.” This is a troubleshooting step used when a computer fails to start (POST).

Why Clear It?

If you change a setting in the BIOS that makes the system unstable—for example, if you try to overclock your CPU too high or change memory timings aggressively—the computer might not even turn on enough to let you back into the menu to fix it.

By clearing the CMOS, you cut power to the memory chip. The chip “forgets” your bad settings and reverts to the safe factory defaults, allowing the computer to boot again.

Three Ways to Clear CMOS

1. The BIOS Menu: If you can still boot, go into the BIOS/UEFI menu and select “Load Optimized Defaults.”
2. The Battery Method: Unplug the PC, remove the CMOS battery, wait 5 minutes, and put it back in. This drains the power and wipes the memory.
3. The Jumper Method: Most motherboards have three pins labeled CLR_CMOS or JBAT1. A small plastic cap (jumper) connects two pins. By moving the jumper to the other position for 10 seconds and then moving it back, you short the circuit and clear the memory instantly.

CMOS vs. UEFI: The Modern Evolution

Technically, the term “CMOS” is becoming outdated in the context of memory storage, even though we still use it.

Modern computers use UEFI (Unified Extensible Firmware Interface) instead of the old BIOS. UEFI is faster, supports larger hard drives, and has a graphical interface with mouse support.

In many modern UEFI systems, the settings are no longer stored in volatile CMOS memory that requires a battery. Instead, they are stored in NVRAM (Non-Volatile RAM) or flash memory, similar to a USB drive or SSD. This memory doesn’t need a battery to hold data.

However, the motherboard still has a battery. Why?
Primarily for the Real-Time Clock (RTC). Even if the settings are saved in flash memory, the clock needs to keep ticking so the time is correct when you turn the PC back on. So, while the “memory” function of the battery is fading, the timekeeping function remains.

CMOS Image Sensors: The Eyes of the Digital World

We cannot discuss CMOS without touching on its other massive application: digital imaging.

For years, CCD (Charge-Coupled Device) sensors ruled the photography world. They offered high image quality but were expensive and power-hungry. CMOS sensors were seen as the cheap, low-quality alternative used in webcams.

However, massive investment in CMOS R&D flipped the script. Engineers figured out how to reduce the “noise” in CMOS sensors. Today, CMOS sensors are superior to CCDs in almost every way:

• Speed: CMOS sensors can read data much faster, allowing for high-speed burst photography and 4K/8K video recording.
• Integration: Because CMOS sensors use standard semiconductor manufacturing (the same as CPUs), logic circuits can be built directly onto the sensor. A CMOS sensor can process the image right on the chip.
• Power: They sip battery life, making high-quality cameras in smartphones possible.

If you own a DSLR from Canon, Nikon, or Sony, or if you take photos with an iPhone, you are using a CMOS sensor.

The Future of CMOS Technology

As we approach the physical limits of how small we can make transistors (Moore’s Law), standard CMOS technology faces challenges. When transistors get too small (atomic scale), “quantum tunneling” occurs, where electrons jump across barriers they shouldn’t, causing leakage and errors.

However, the industry is adapting with variations of CMOS:

• FinFET: A 3D transistor design that allows for better control over the current, used in modern 14nm, 10nm, and 7nm chips.
• GAAFET (Gate-All-Around): The next evolution, wrapping the gate around the channel on all sides for ultimate control.

Despite these structural changes, the underlying principle—using complementary pairs of transistors to minimize power—remains the bedrock of modern electronics.

Frequently Asked Questions (FAQs)

Is CMOS the same as BIOS?

No, but they work together. The BIOS is the program (firmware) that starts your computer. The CMOS is the memory chip that stores the settings for that program (like date, time, and boot order). Think of BIOS as the computer code and CMOS as the configuration file.

Can a computer run without a CMOS battery?

Yes, usually. Most desktop computers will boot without the battery, provided they are plugged into a wall outlet. However, you will likely have to press F1 to bypass a checksum error every time you boot, and the time will be wrong. Some laptops, however, may refuse to complete the POST process if the battery is dead or missing.

How long does a CMOS battery last?

On average, a CR2032 CMOS battery lasts between 5 to 10 years. Factors like temperature and how often the computer is disconnected from main power can affect this lifespan.

Does removing the CMOS battery reset my Windows password?

No. The CMOS stores BIOS passwords (which prevent you from booting the machine), but it has nothing to do with the OS password. Resetting CMOS will not help you hack into a Windows account.

What is a CMOS sensor in a camera?

It is an image sensor created using CMOS manufacturing processes. It converts light (photons) into electrical signals (electrons), which are then processed into a digital image. It is the dominant technology in digital photography today.

Conclusion: The Tiny Giant

It is fascinating to think that a technology developed in the 1960s to save power on mainframe computers is now responsible for the 4K video on your phone and the startup sequence of your laptop.

“CMOS” carries a heavy load in the tech world. As a manufacturing process, it is the canvas upon which the digital age is painted. As a component, it is the tiny, battery-backed sentry that remembers who your computer is while it sleeps.

Next time your computer clock starts drifting or you successfully revive a dead PC by popping out a small silver battery, you’ll know exactly what is happening under the hood. You aren’t just fixing a glitch; you are interacting with one of the most enduring and essential technologies in history.

Key Takeaways:

• CMOS (Technology): An energy-efficient method for making microchips, used in CPUs and image sensors.
• CMOS (Memory): A chip on the motherboard that stores BIOS settings.
• The Battery: A CR2032 coin cell keeps the CMOS memory and Real-Time Clock alive when the PC is unplugged.
• Clearing CMOS: A vital troubleshooting step to reset BIOS settings to factory defaults.
